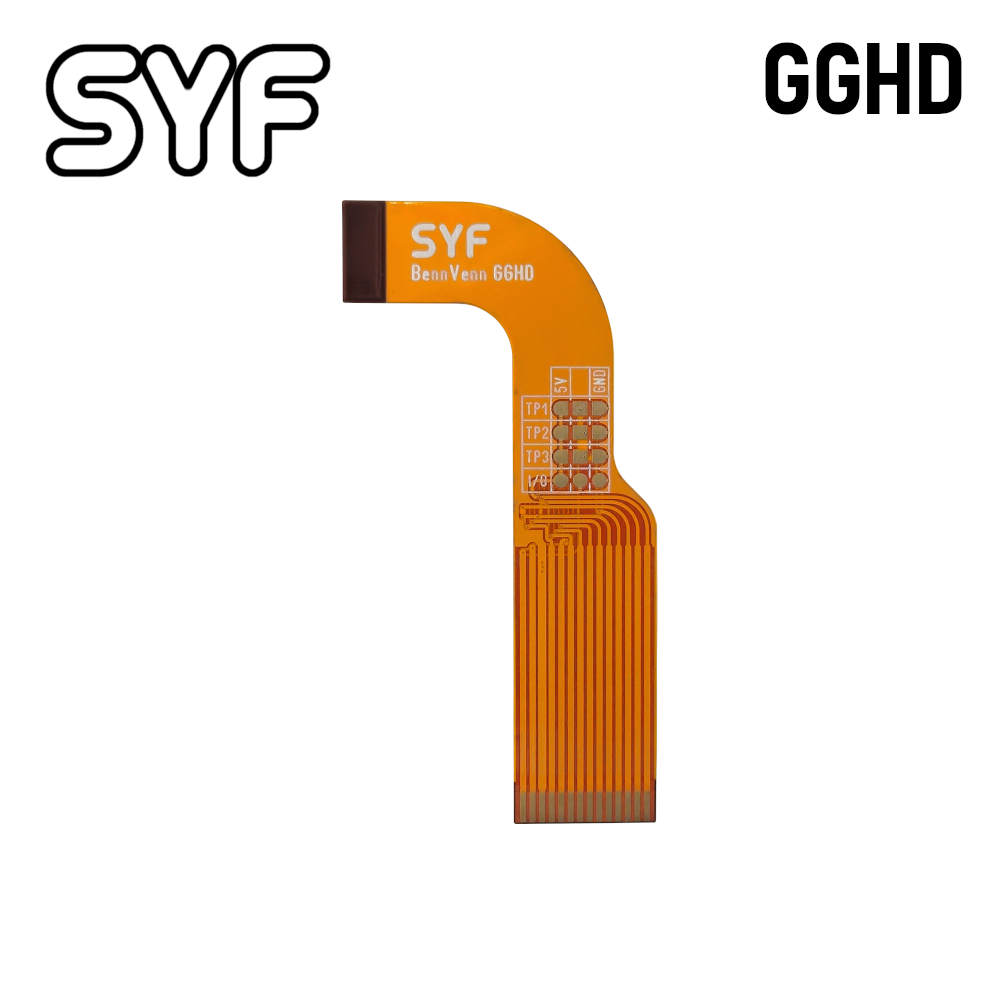

SYF BennVenn GGHD kit ribbon adapter 1.0 for mainboard kits

* STOCK UPDATE 1/26/25: NOW IN STOCK!

• Custom made FFC ribbon for SYF mainboard kits - The cleanest way to install your LCD kit!
• This ribbon can be used with the BennVenn GGHD display kit ("Rev3" and later, NOT "GGSD" kits) that are equipped with an FFC connector - Purchase one HERE!

Specs & installation:

• Simply connect the both sides to the FFC connectors of the BennVenn and SYF boards
• 5V, I/O, GND pads are to connect the touch sensor
• TP1, TP2, TP3 pads are for enabling future options, just leave them untouched
• If an unstable image is encountered, replace R13 (dual-ASIC mainboard) or R24 (single-ASIC mainboard) with a 4.7k or 10k resistor (10k resistor INCLUDED!)

NOTICES:

• MODERATE SOLDERING AND ELECTRONICS SKILLS ARE REQUIRED FOR INSTALLATION OF THIS KIT!
• This is a HOBBY ELECTRONICS KIT and is sold as-is with no warranty!  This item is NON-RETURNABLE once used!  Installation is done at your own risk, and we are NOT responsible for any damage resulting from mishandled electronics or mishandled parts during installation!
