BennVenn GGHD Display kit for Sega Game Gear VA0 / VA1
BennVenn GGHD Display kit for Sega Game Gear VA0 / VA1
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Unit price
/
per
Couldn't load pickup availability
* STOCK UPDATE 7/8/25: GGHD FW v2.3 kits NOW IN STOCK!
* THIS KIT IS ONLY COMPATIBLE WITH SEGA GAME GEAR MODELS VA0 AND VA1!
- NOTICE: This product requires MODERATE to ADVANCED soldering!
- Replace your SEGA Game Gear's original display assembly with a brand new IPS display kit that vastly improves the battery life of your Sega Game Gear console!
- Created by renowned Australian retro inventor BennVenn!
- This version of the kit is compatible with ONLY motherboard models VA0 and VA1!
- Supports both ORIGINAL GameGear motherboards, AND brand new replacement motherboards by SYF, found HERE!

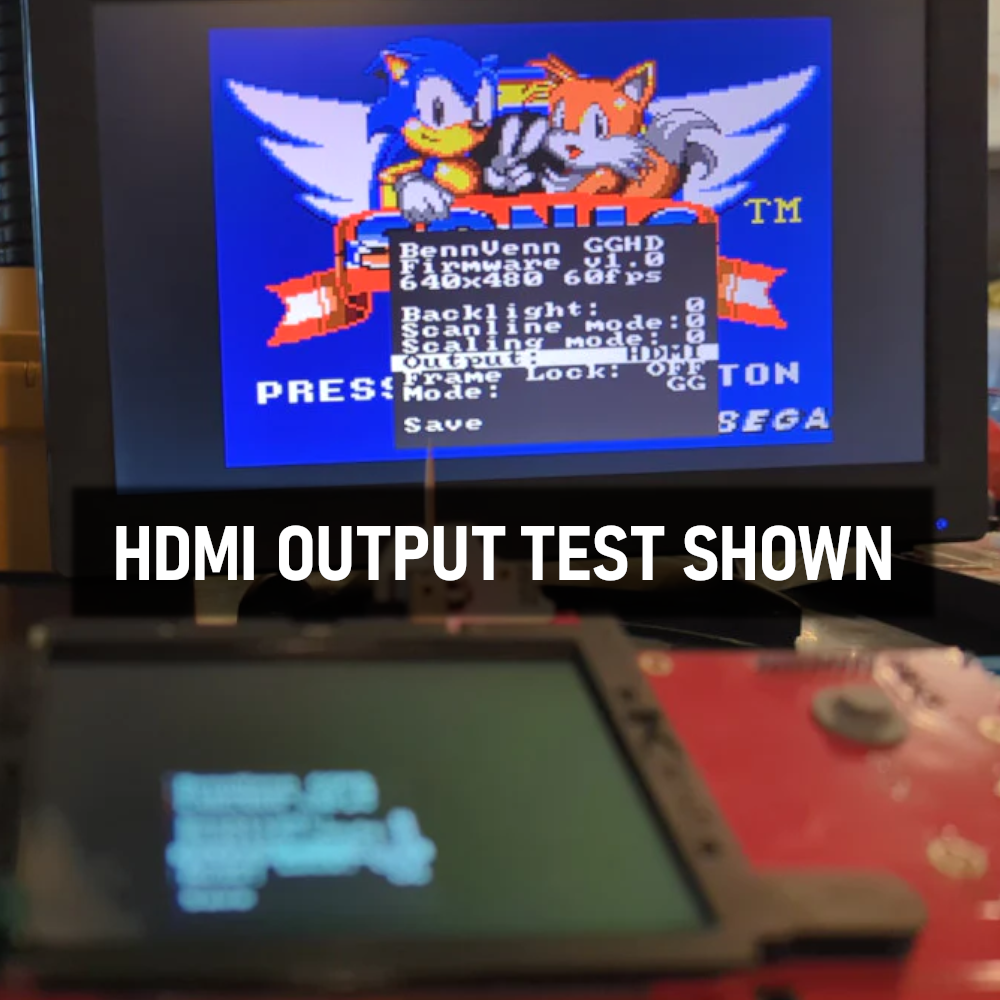

- Supports HDMI output (TMDS) via optional ribbon and connector assembly. (Select YES or NO above to choose to include)
- Use the plastic stencil in the optional HDMI kit for easily tracing where to cut your shell for easier HDMI port installation.
GGHD "2024 - FW v2.2" kit:
- This is the original version of the GGHD kit running original firmware ("FW").
- Requires installation of touch sensor for OSD menu control.
- NOTICE: We are selling this kit version at a discount to clear our remaining stock.
GGHD "2025 - FW v2.3" kit:
- This is the 2025 (newest) revision of the GGHD kit.

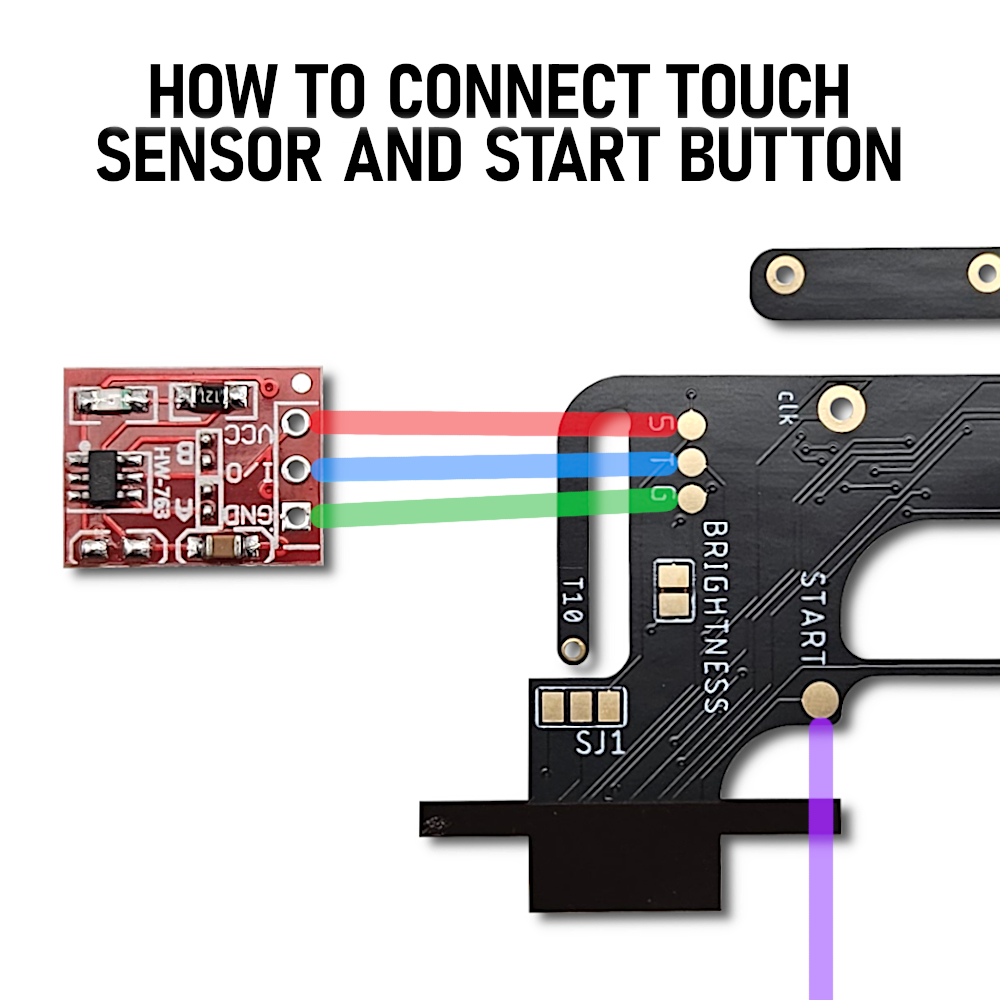

- Does NOT require installation of touch sensor for OSD menu control (solder "T" to "5" on the ribbon if not installing with touch sensor).
- Supports user-defined button combo to bring up and close the OSD menu (whether installing touch sensor or not).
- Supports image position adjustment left or right.
- Handy tip: Hold UP and START when powering-on console to reset all OSD settings to defaults (FW v2.3 only).
- NOTICE: Some FW v2.3 display unit PCBs include a 3rd FPC connector that is unused on the current v2.3 firmware. Firmware updates are NOT available to customers and will be released on future GGHD kits only.

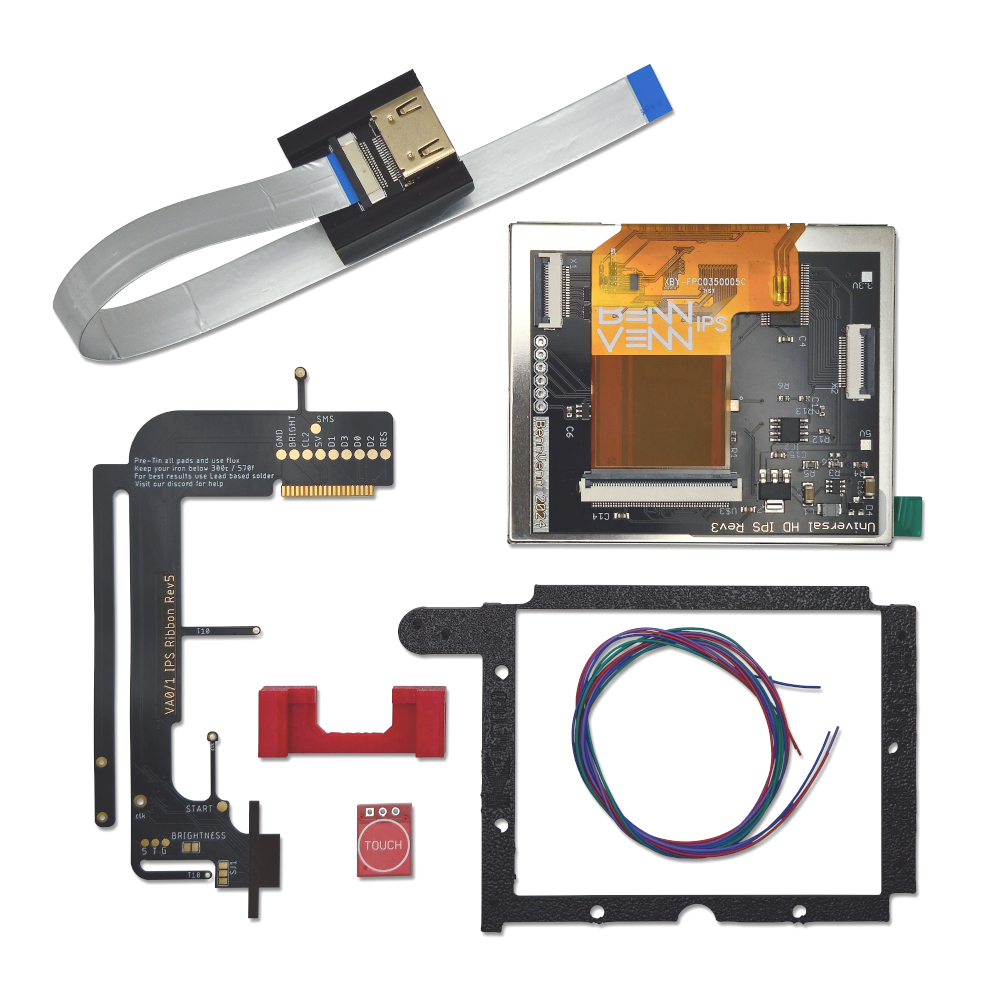

ALL GGHD KITS INCLUDE (5) :

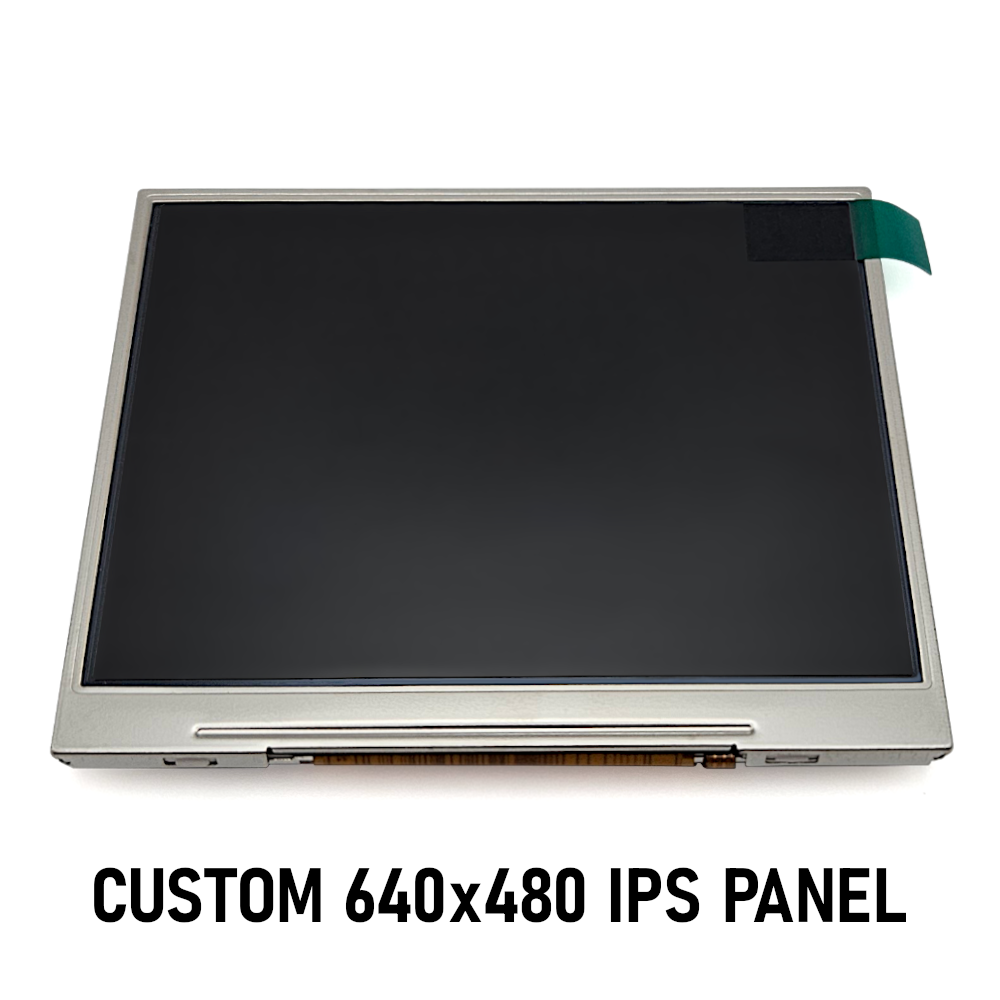

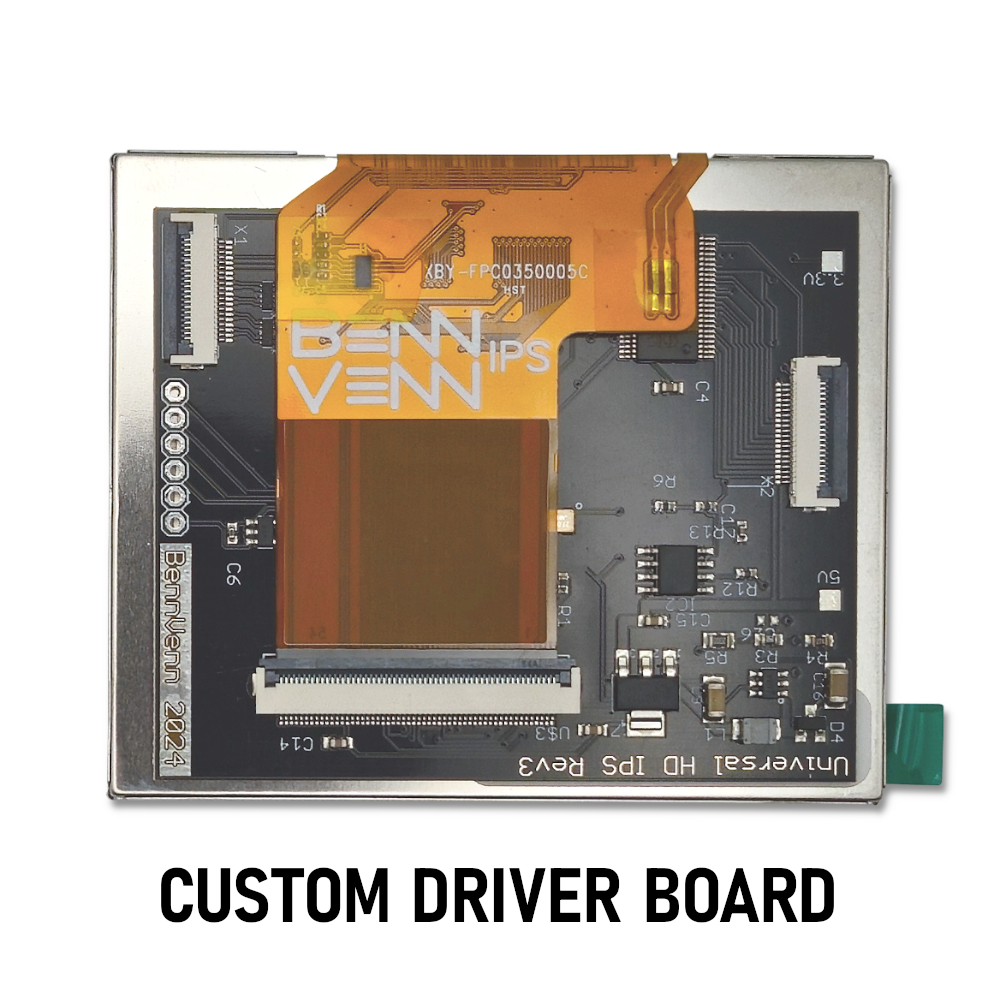

- Custom BennVenn 640x480 IPS display panel
- Plastic frame for positioning the display
- All-in-one ribbon for easy connection and soldering
- Touch sensor module (for menu control)
- Extra wire for soldering and installing display kit
OPTIONAL COMPONENTS (2) :

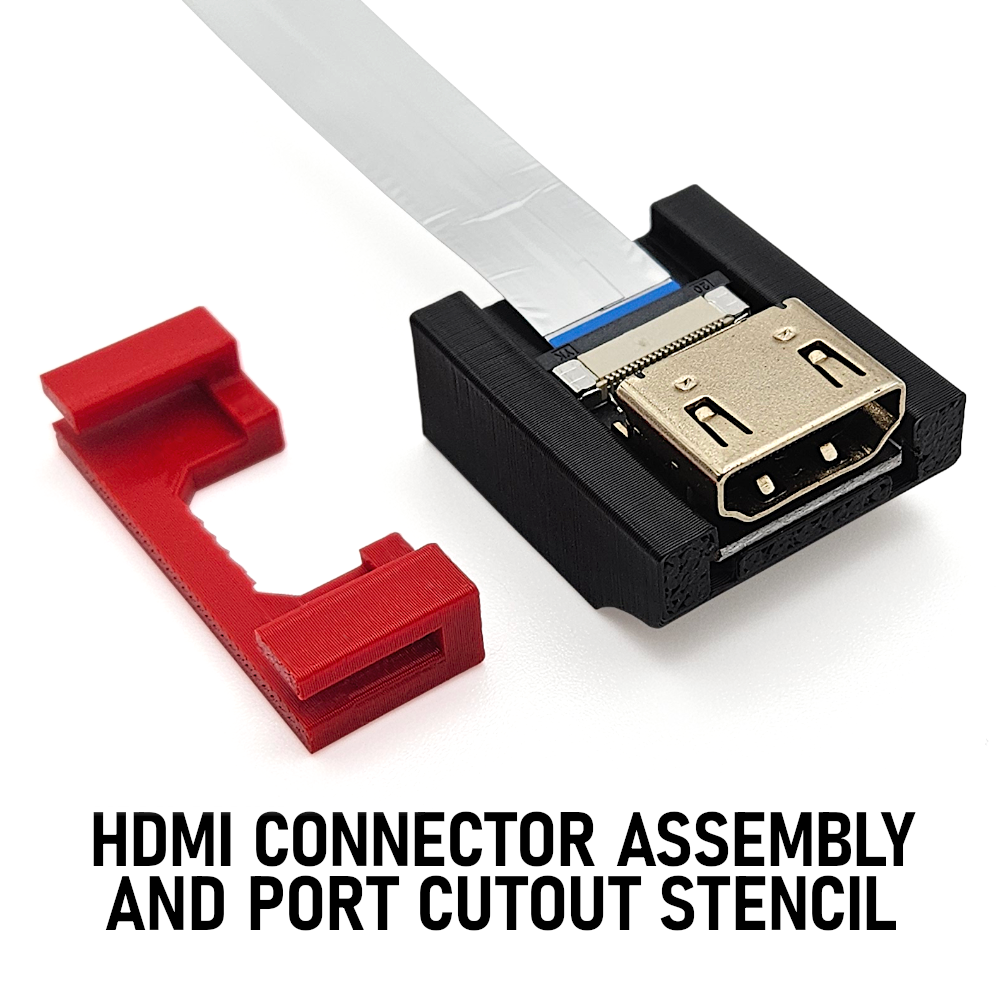

- Plastic HDMI port stencil for cutting a hole in your console's shell more accurately
- HDMI port and ribbon assembly with plastic mounting frame
NOTICES:
- See full install guide for installation instructions: CLICK HERE! (This guide is for an older version of this kit that is very similar. Full GGHD kit install guide coming soon!)
- Some parts shown may differ slightly in color, shape, size, or style from what you receive.
- For additional troubleshooting and information, please visit the BennVenn Discord server: CLICK HERE!
NOTICE: This kit is NON-RETURNABLE once used! Please be sure to study all pictures and follow the above-noted instructions and guide for proper installation!
