Robot_Retro Gameboy Advance Flex Amp + Speaker (kit)
Robot_Retro Gameboy Advance Flex Amp + Speaker (kit)
Regular price
$16.00 USD
Regular price
Sale price
$16.00 USD
Unit price
per
Couldn't load pickup availability
- NOTICE: This product requires soldering! (MODERATE skill level recommended)
- Give your Gameboy Advance console a much-needed boost with this mini flex PCB amplifier kit! (Also can clean some hiss and noise from audio signal)

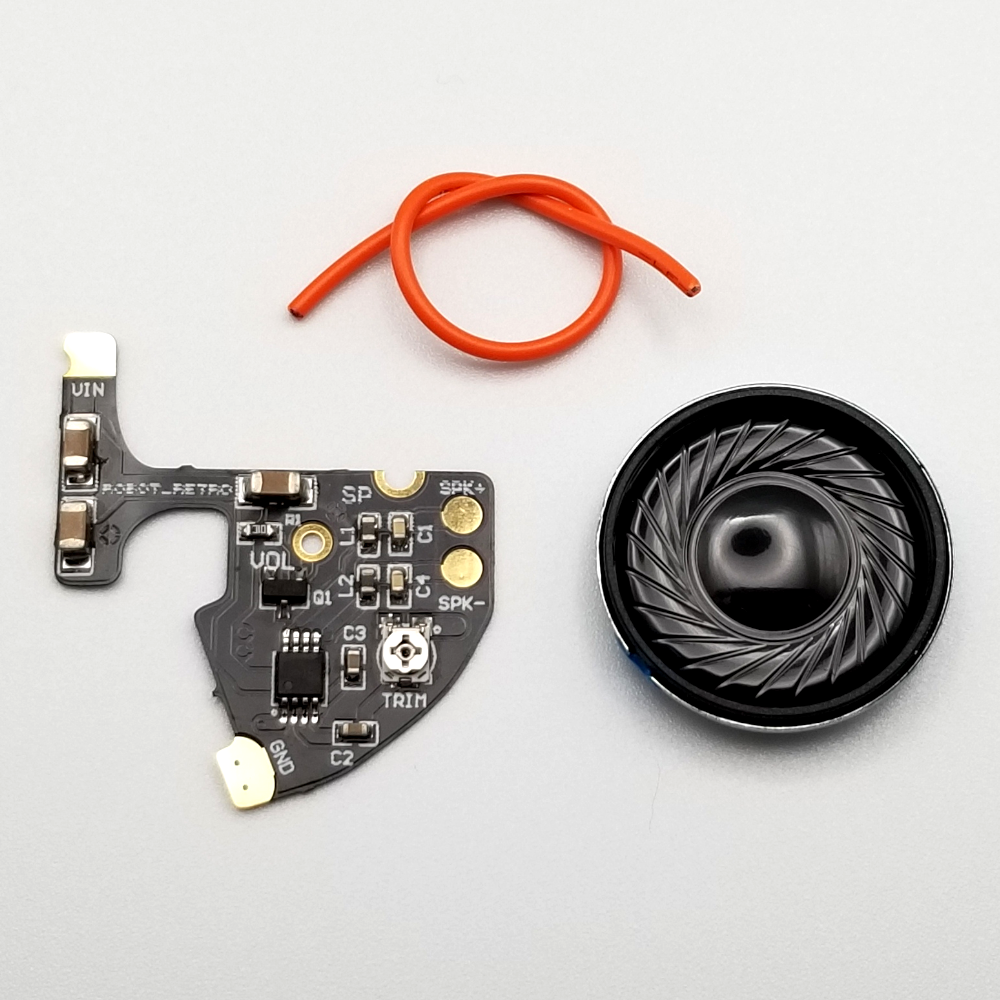

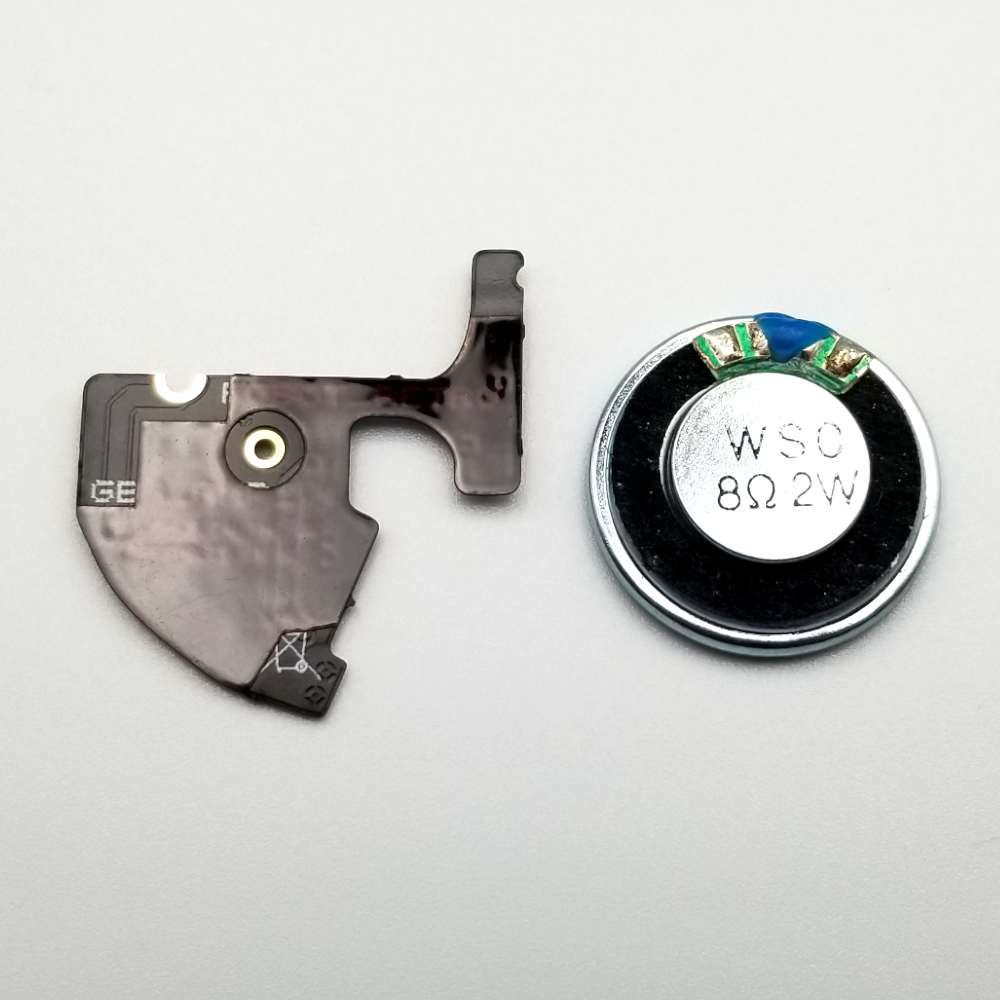

- Kit includes amplifier flex PCB, 8 Ohm 2W speaker, and 2 to 3 in. of stranded core wire
- 4 solder points for easy installation + 2 solder points for the included speaker
- Amp includes "TRIM" potentiometer for manual peak setting and adjustment during installation
- Remove old speaker.

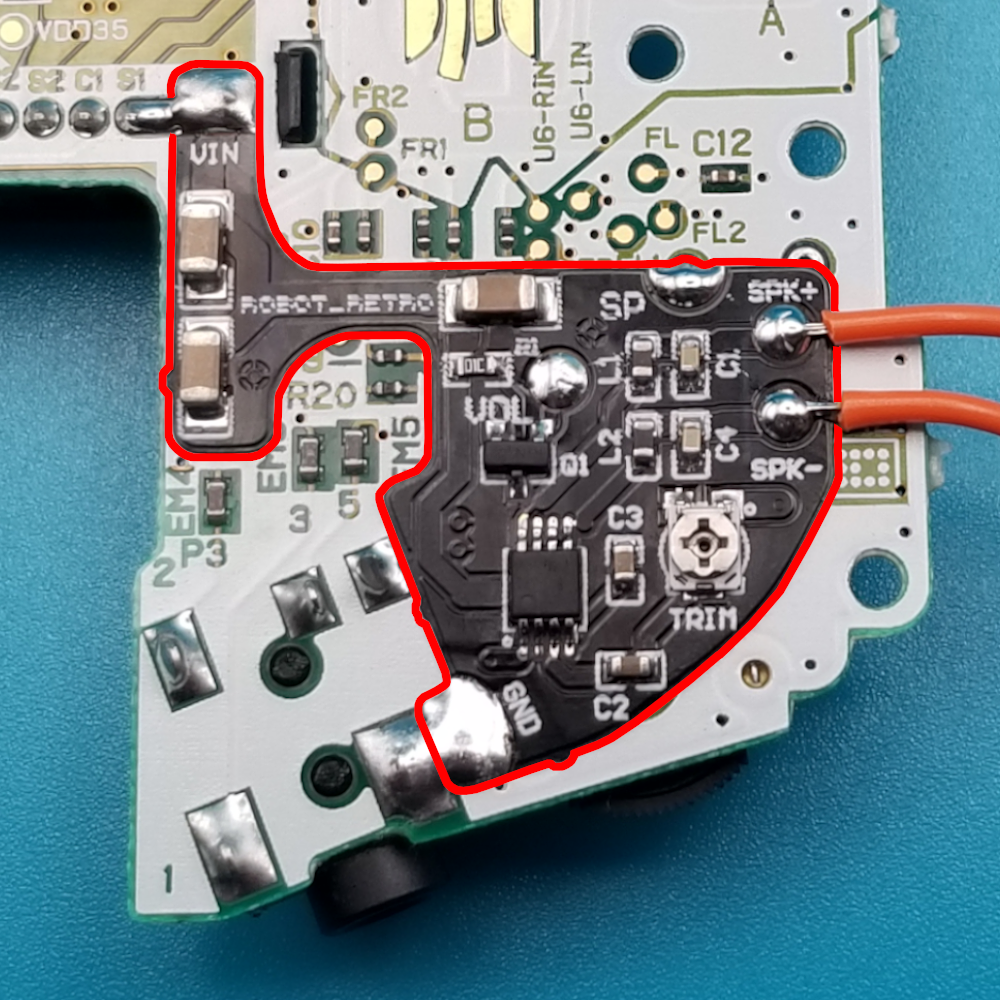

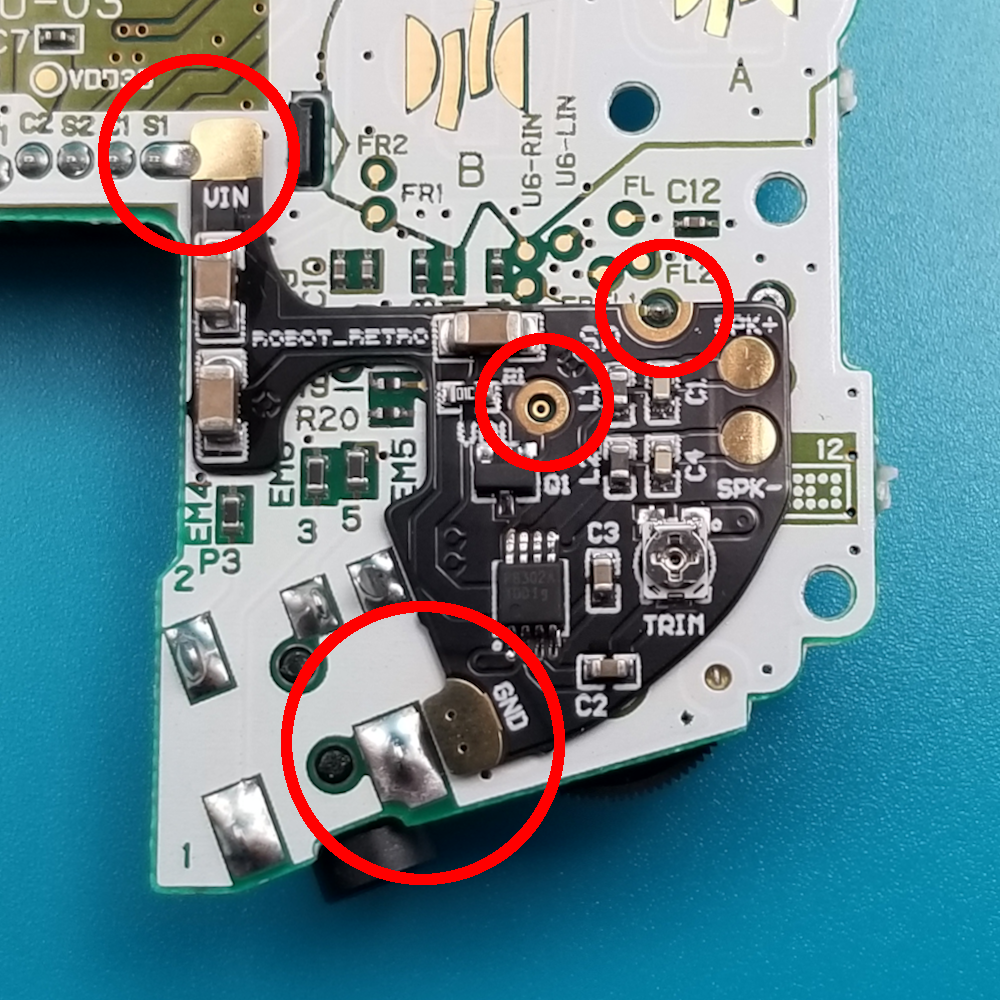

- Align flex PCB as shown in pictures.

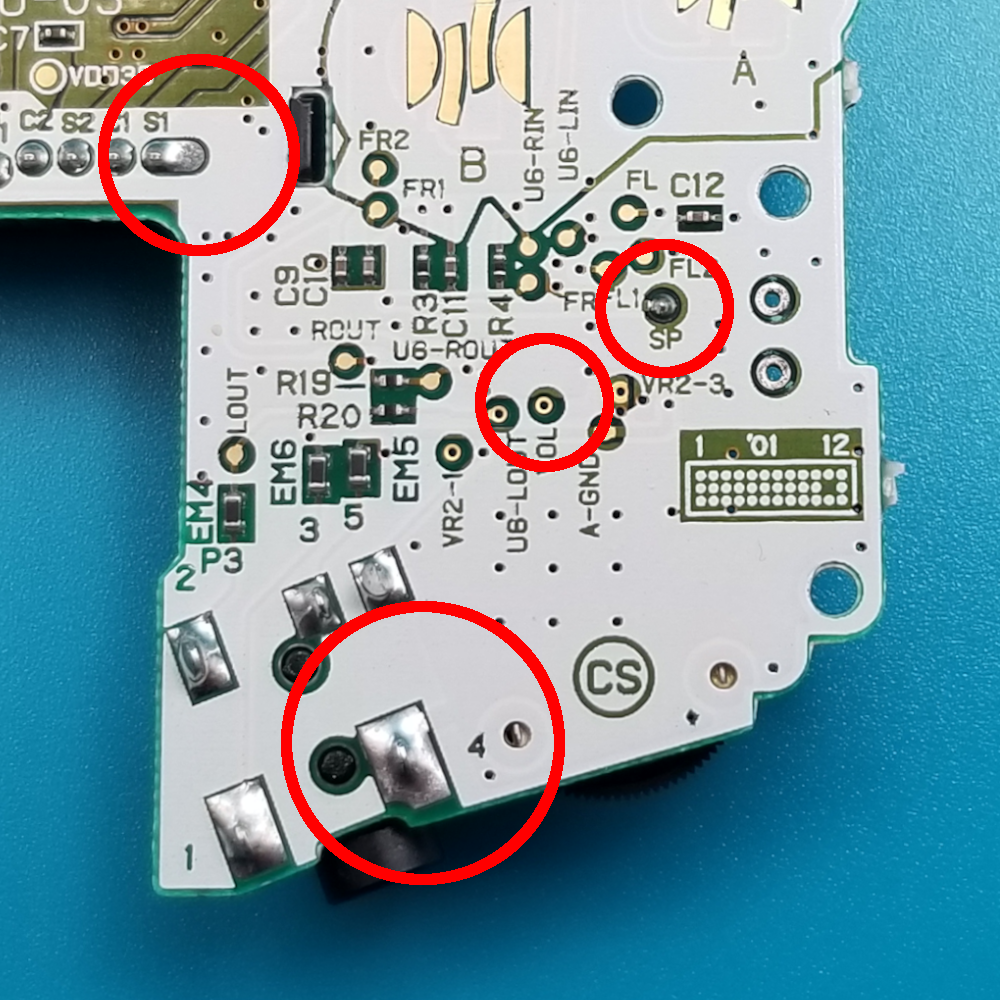

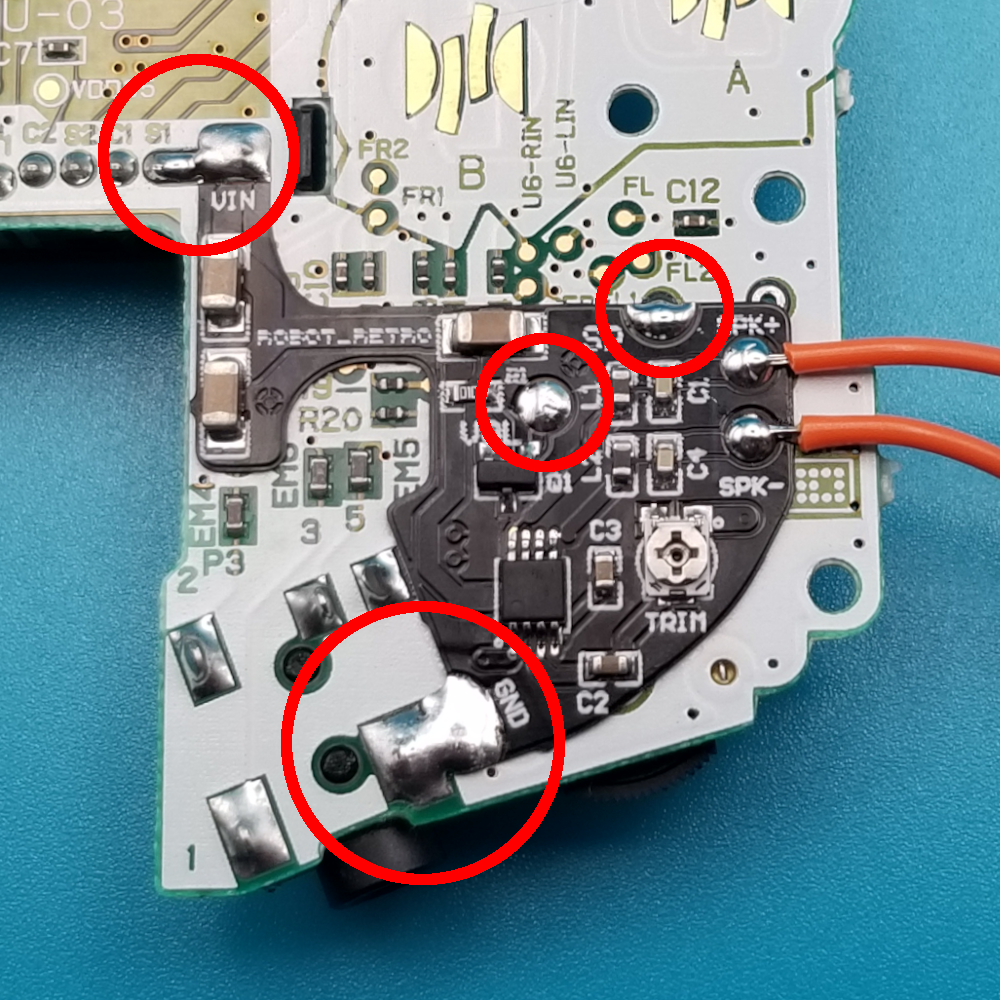

- Solder the 4 indicated points (use flux for best results).

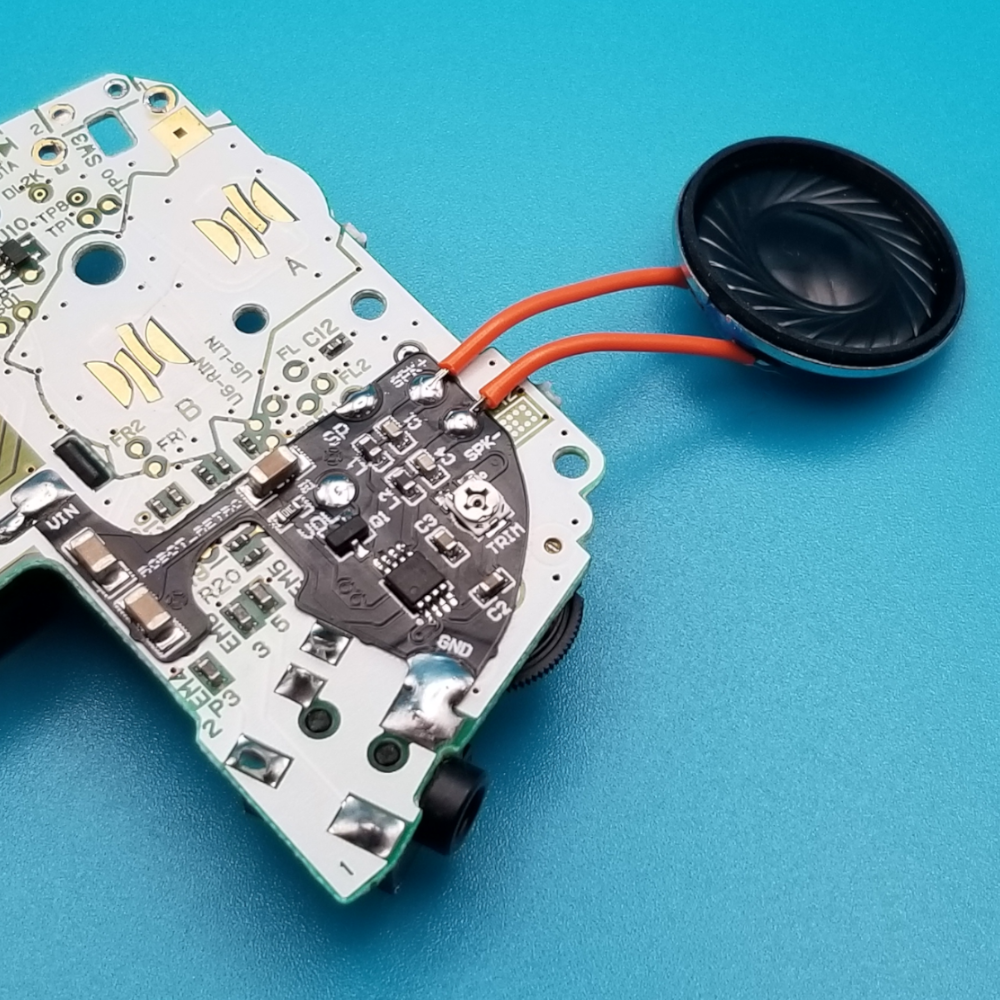

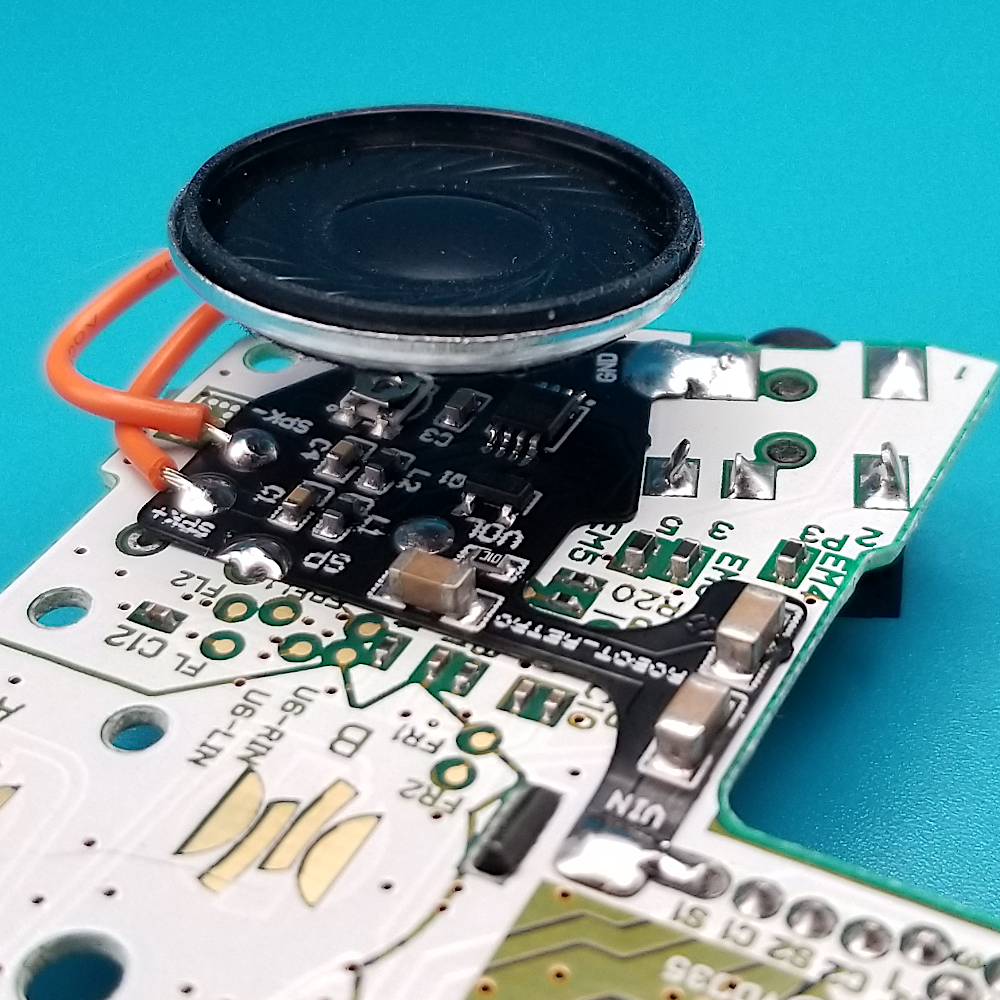

- Install speaker onto flex amp via 2 solder points.
- Test and set amp peak level via "TRIM" pot.

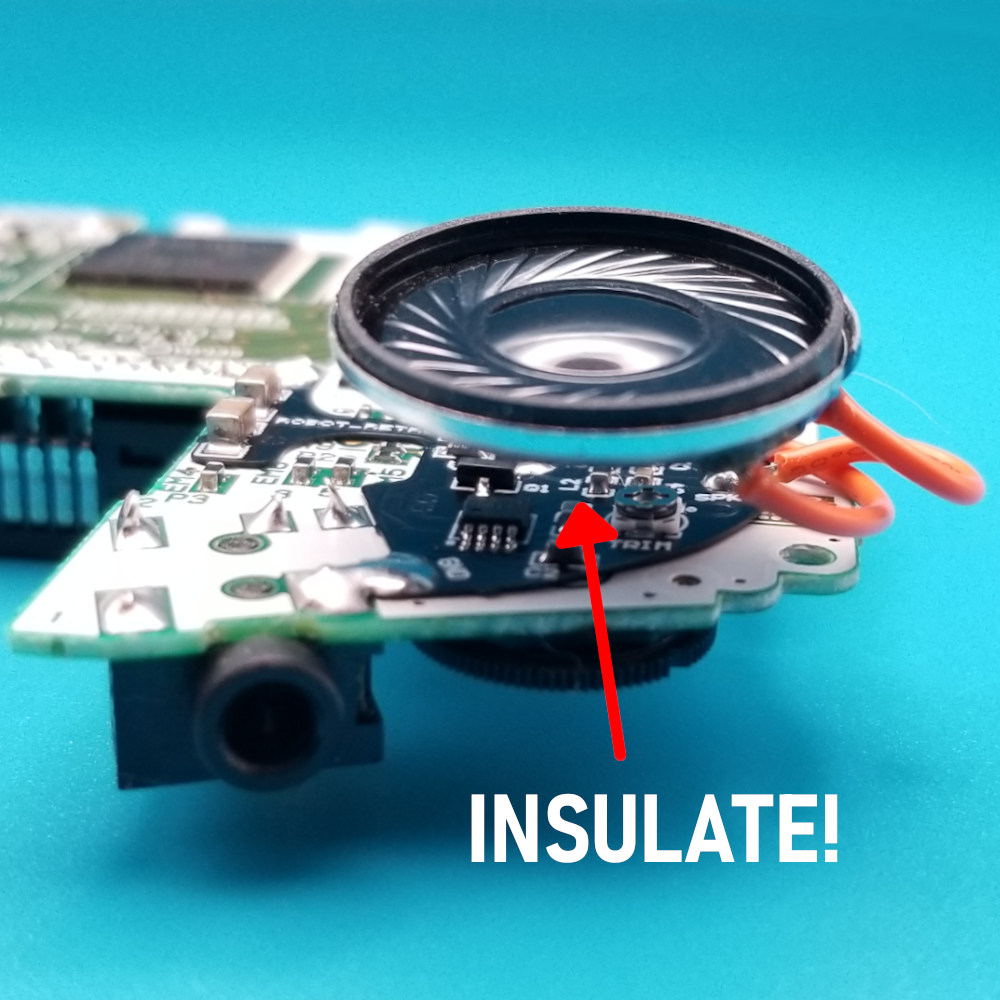

- Insulate underside of speaker (or top of amp PCB)
- Installation complete!
