SYF SEGA Game Gear LiPo Power Board v1.7
SYF SEGA Game Gear LiPo Power Board v1.7
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Couldn't load pickup availability
UPDATE 10/22/25: NOW IN STOCK!
PRODUCT DISCLAIMER & RELEASE OF LIABILITY:THIS PRODUCT DOES NOT COME WITH ANY WARRANTY AND IS NON-RETURNABLE! PLEASE INSTALL CORRECTLY WITH YOUR BATTERY POLARITY MATCHING THE INDICATED POLARITY ON THE NEW POWER BOARD PCB! SYF AND HIGH SCORE! TECH SUPPLY ARE NOT LIABLE FOR ANY DAMAGE TO BATTERIES, COMPONENTS, CONSOLES, OR ANY OTHER PROPERTY! INSTALLER IS RESPONSIBLE FOR PURCHASING A NEW POWER BOARD IF PURCHASED POWER BOARD IS DAMAGED OR DESTROYED DURING INSTALLATION - FREE REPLACEMENTS WILL NOT BE PROVIDED FOR ANY REASON! (Updated 10/22/25) |
Product summary:
- This is a brand new replacement power board for the SEGA Game Gear, made using all new components!
- Allow your SEGA Game Gear console to run on rechargeable internal LiPo batteries, rather than standard AA cells.
- USB-C charging port for ease of use and maximum compatibility!
- Complete drop-in replacement - Compatible with original Game Gear mainboards, but ONLY with an aftermarket display kit also installed! (Power board is NOT equipped with 34V voltage regulation hardware for original display!)
- Supports charge and play functionality - Play your console while charging!
- Does NOT support original AA batteries - MUST use rechargeable LiPo batteries with this new power board!
- Due to shipping restrictions, the installer must source rechargeable batteries:
-
- Required LiPo battery specs:
3.7V LiPo, size 104050, JST PH 2.0mm connector
- Required LiPo battery specs:
-
Select the proper connector for your console model:
- Tyco AMP CT connector → SEGA Game Gear VA0 and VA1 models
- JST PH connector → SEGA Game Gear VA4, VA5, and Majesco models
- NOTE: Tyco AMP CT connector shown in product picture
Included components:

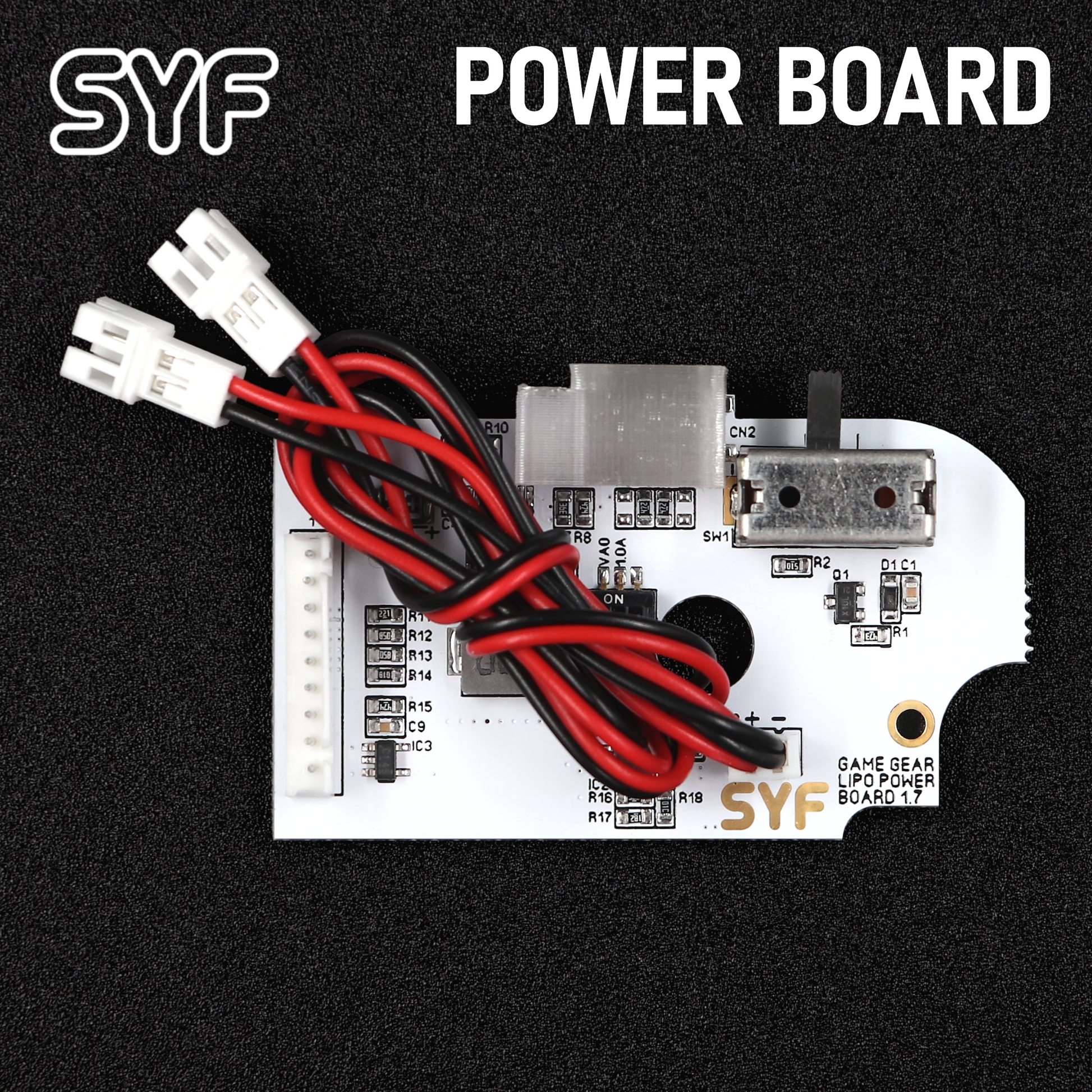

- New SYF Game Gear Power Board v1.7 PCB
- NOTE: No FFC ribbons, cables, speakers, or other adapters included!
NOTICES:
- This is a HOBBY ELECTRONICS KIT and is sold as-is with no warranty! Installation is done at your own risk, and we are NOT responsible any damage resulting from mishandled electronics or mishandled parts during installation or otherwise!
- Per above, please verify the connector type on your console’s power board to determine which variant to purchase!
