* STOCK UPDATE 9/2/24: Very limited stock available!
NOTICE: This product requires soldering! (MODERATE skill level recommended)
Product details:

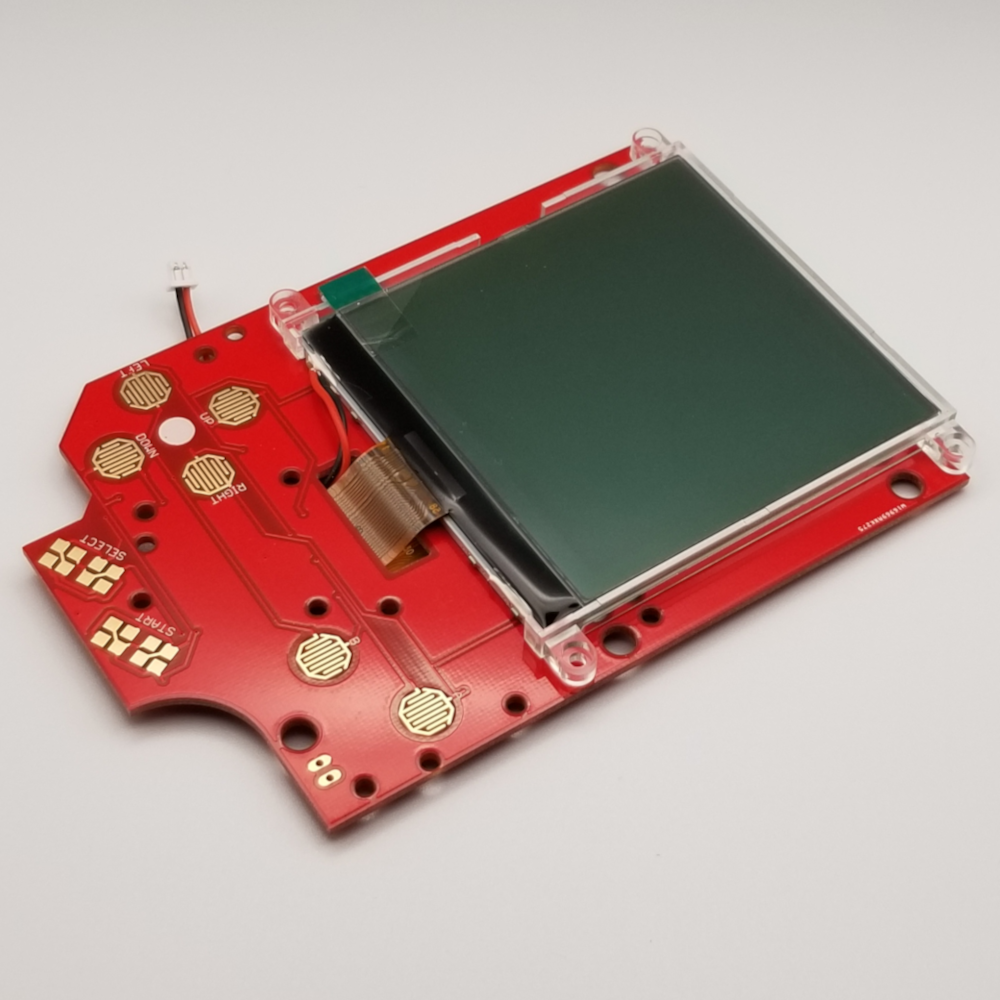

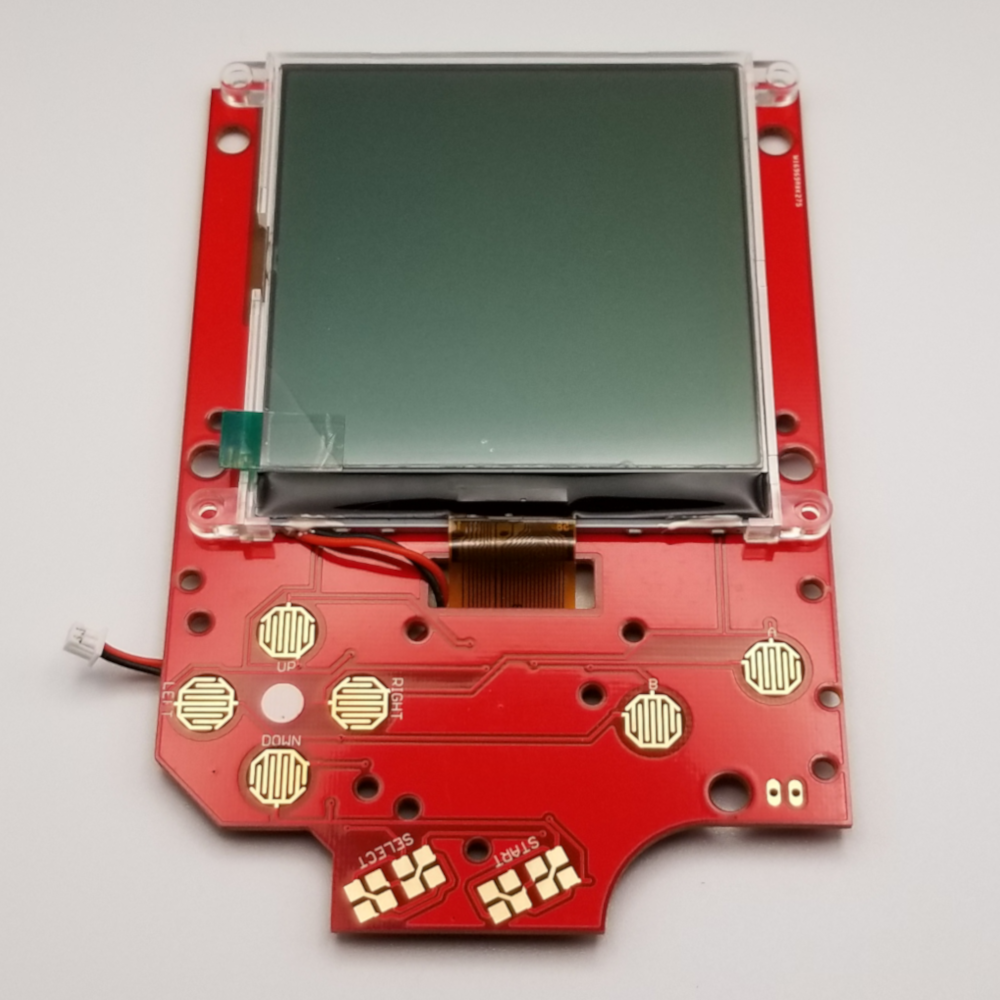

- This display kit includes a replacement front PCB and backlit STN display panel for the original DMG Gameboy

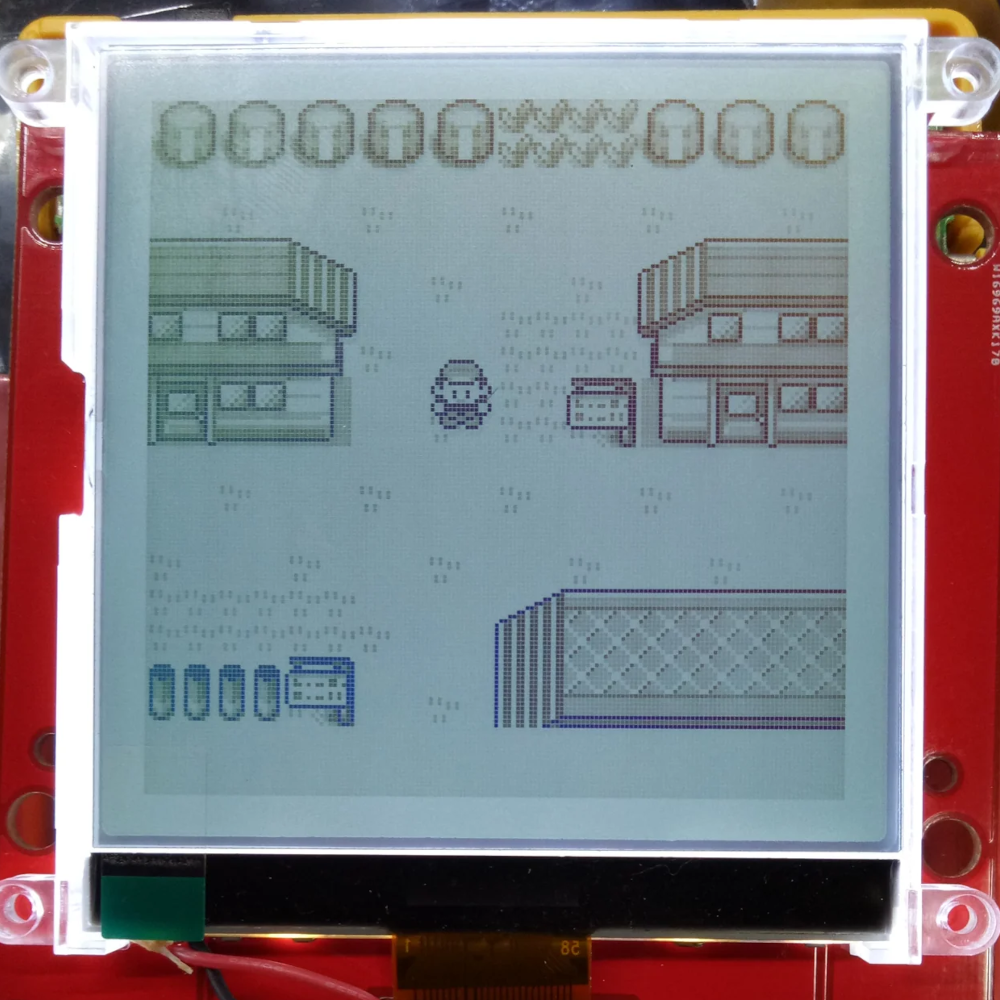

- Display panel does have some blur/refresh latency similar to the original display panel, is not ideal for games with a lot of motion and action
Important notes:
- This kit DOES NOT INCLUDE a ribbon cable for connecting the display PCB to a Gameboy mainboard
- Replacement display lens is NOT included - A lens with a larger viewing area is necessary
- Power wires for the LCD backlight are not soldered for easier display panel installation - Solder them AFTER installing the panel and kit in your console! (Feed through ribbon hole in PCB)
- Shell trimming is required for display panel installation and having a proper viewing window
Required soldering:
- Speaker - Recycle your original speaker, solder to pads on lower right side of PCB

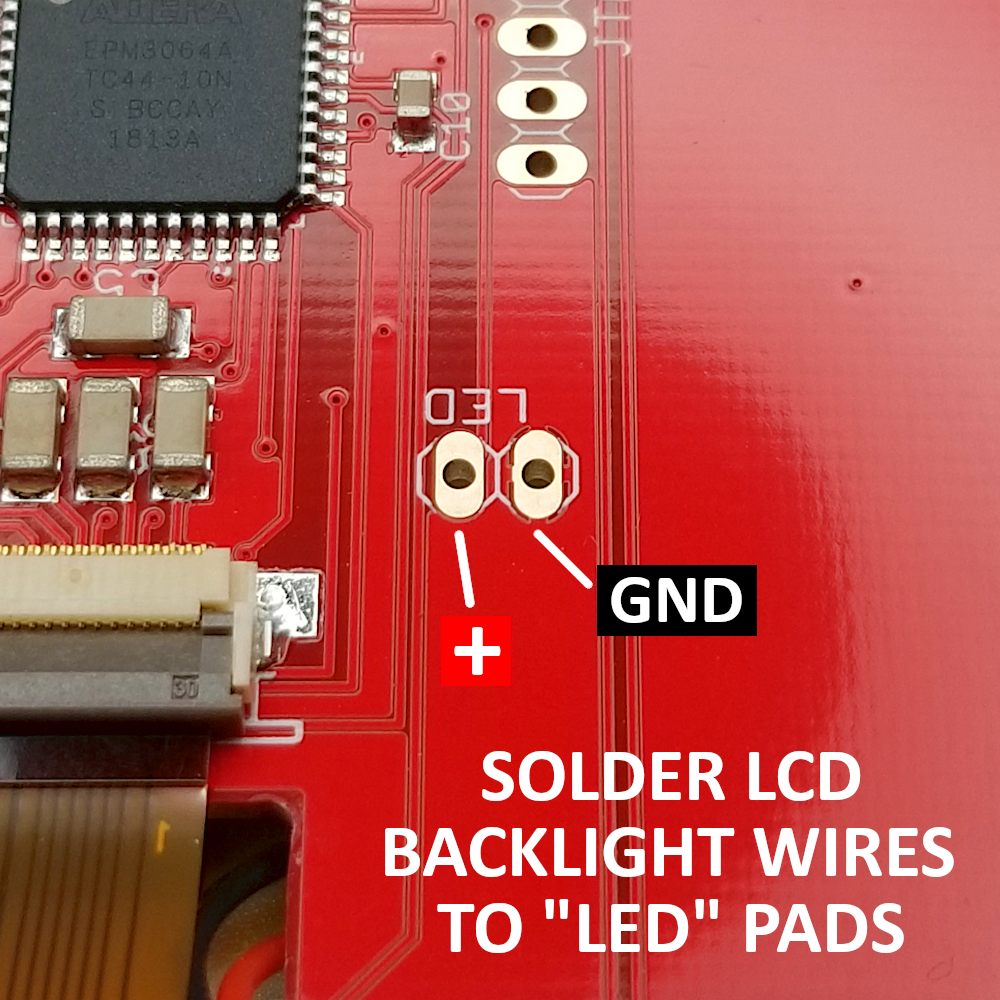

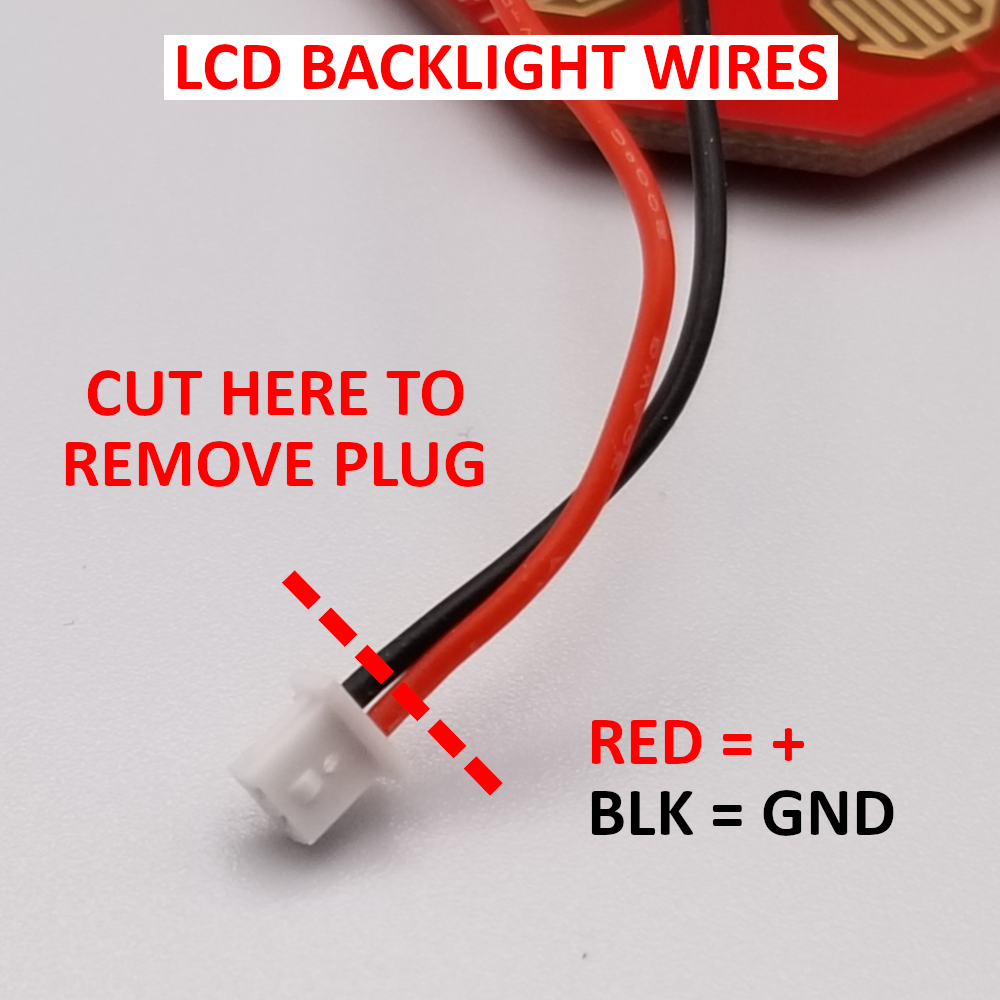

- Display backlight wires (pictured) - Cut/remove white plug on panel, solder + and GND wires to "LED" pads as directed

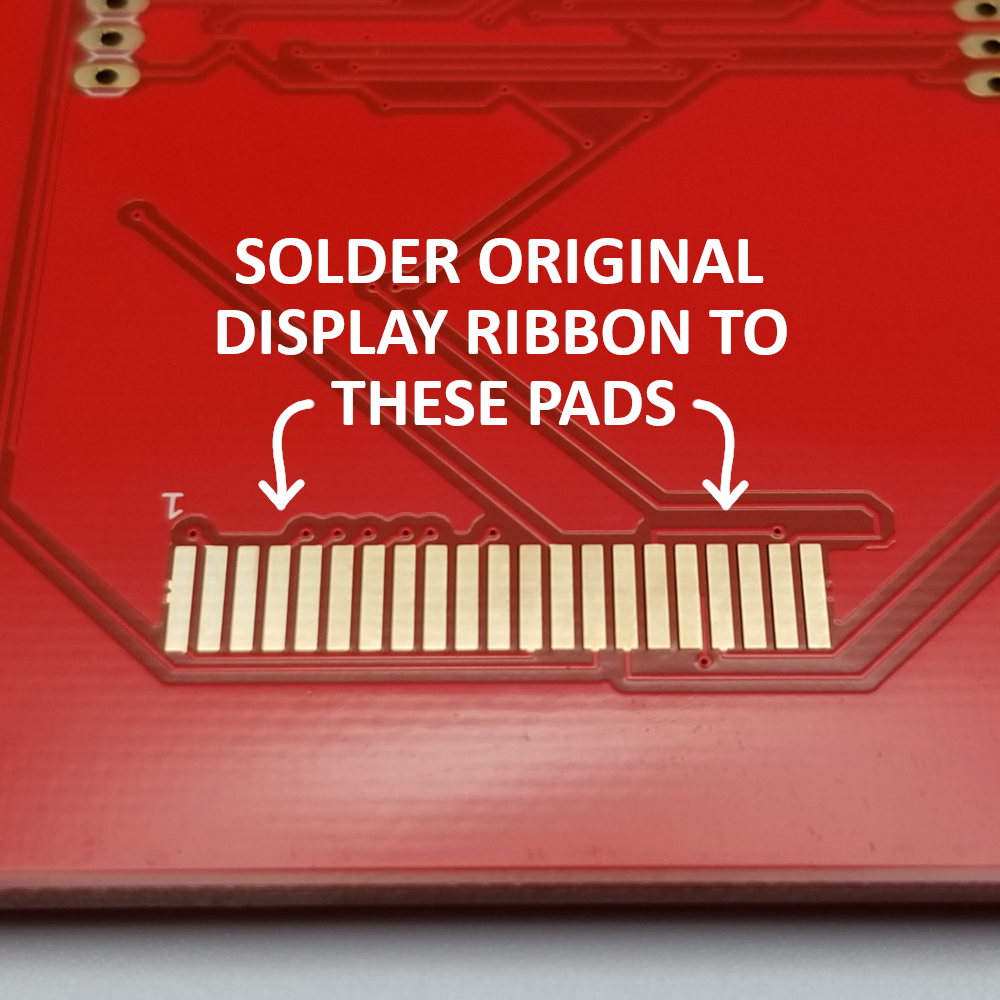

- Ribbon (pictured) - Recycle your original ribbon cable, solder directly to pads as directed
NOTICE: This item is NON-RETURNABLE once used! Please be sure to study all pictures and follow the above instructions for installation!
