BennVenn MBC3000 Dual (V4) RTC reflashable Gameboy cartridge

 * STOCK UPDATE 12/30/24: IN STOCK!

NOTICE: PLEASE READ ALL PRODUCT DETAILS CAREFULLY!  DETAILS FOR GETTING A CUSTOM ROM FLASHED TO YOUR CARTRIDGE ARE BELOW!

Load and play your own Gameboy and Gameboy Color game ROMs! Ideal for Pokemon games, Pokemon ROM hacks, some homebrew titles, and more!

Product features:

• Cartridge holds 1 or 2 Gameboy or Gameboy Color game ROMs at a time
• Ideal for Pokemon games, Pokemon ROM hacks, or LSDJ!
• Can be used with the Joey Jr. cartridge flasher, sold HERE!

• Utilizes FRAM for save data - No battery required for saves!
• Real-time clock (RTC) allows for time-based events in applicable games to take place (battery required and included - CR1220 LiCB cell)
• Can hold up to 2 game ROMs, 2 save files, and 2 RTC (clock) instances on a single cartridge!
• MBC3 and MBC5 modes supported, can switch ROMs and modes via DIP switches (Shell must be opened - Instructions pictured, also detailed below)
• Up to 8 MB of ROM storage accessible in MBC5 mode - Use for storing 1 game ROM
• 2x 4 MB of ROM storage accessible in MBC3 mode - Use for storing 2 game ROMs
• Up to 128 KB of FRAM for save data in MBC5 mode (i.e. LSDJ)
• 2x 64 KB FRAM available in MBC3/30 mode - NOTE: RTC enabled in MBC3 mode
• Alternate cartridge shell colors can be purchased HERE! (3.8mm Gamebit socket or screwdriver required, see product page for details)

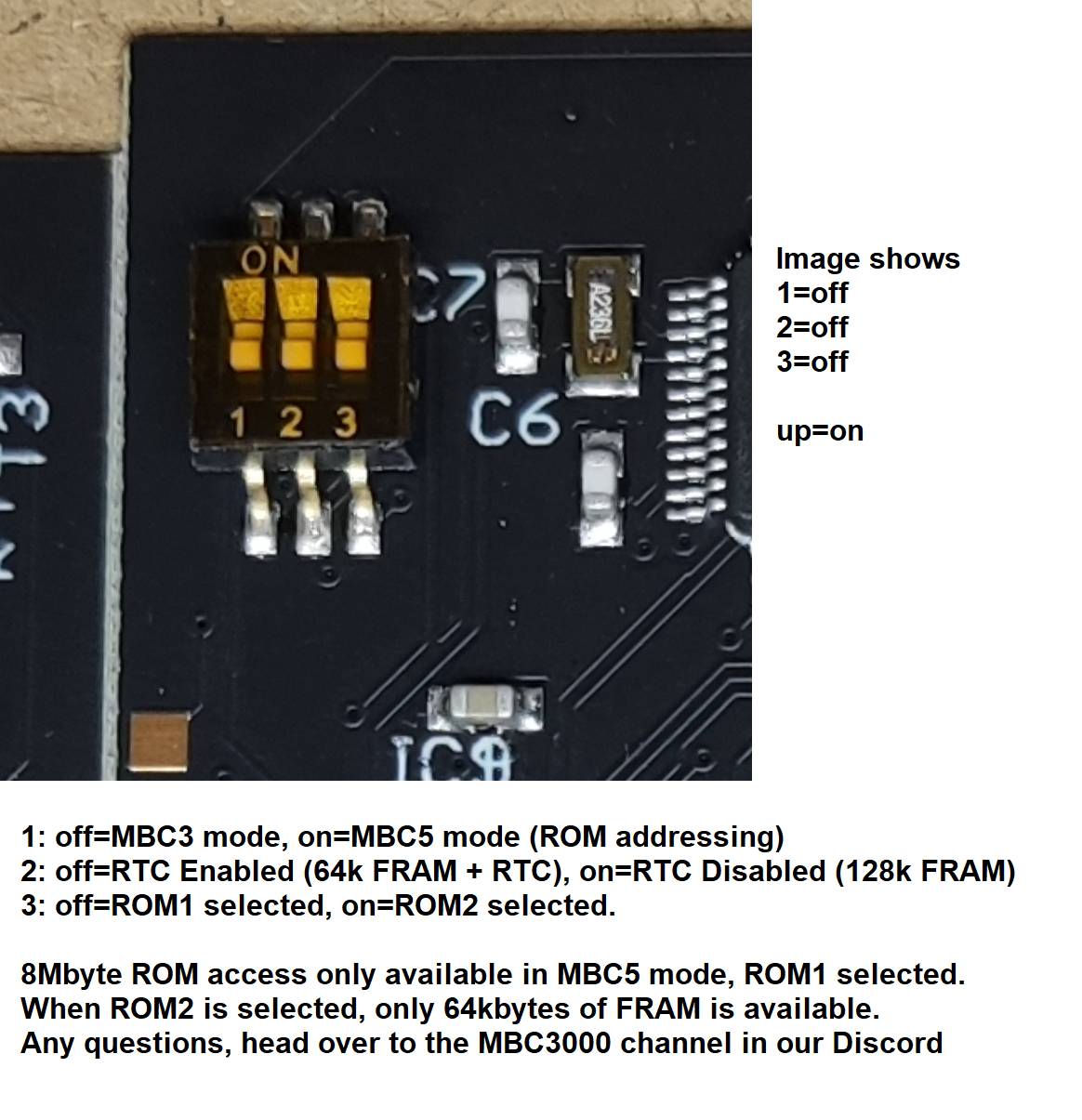

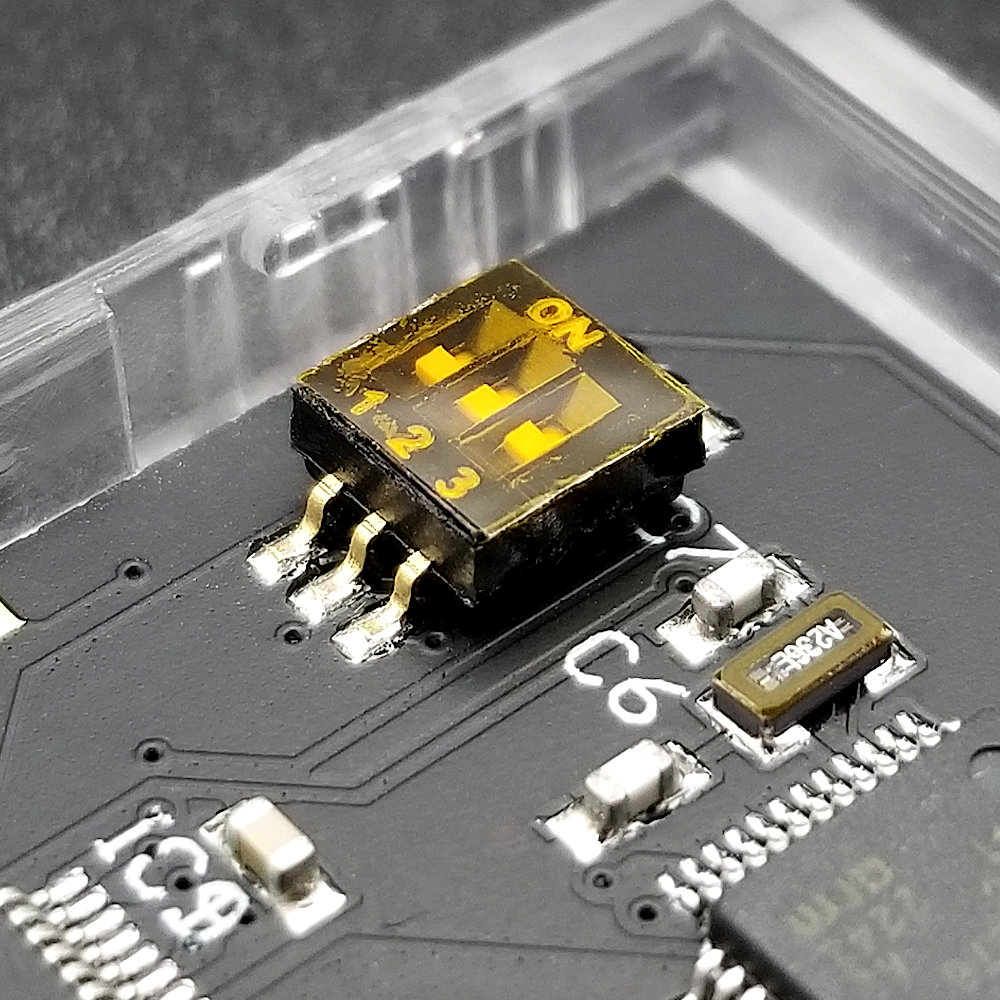

DIP switch instructions:

• DIP 1 - Mapper mode:
• OFF = MBC3
• ON = MBC5
• DIP 2 - RTC/clock:
• OFF = RTC enabled (64 KB FRAM + RTC)
• ON = RTC disabled, but all 128 KB FRAM addressable for saves (usable with LSDJ and other such ROM's)
• DIP 3 (Mode A) - When in MBC3 mode (DIP 1 OFF):
• OFF = ROM bank 1 selected (4 MB), FRAM bank 1 selected (64 KB)
• ON = ROM bank 2 selected (4 MB), FRAM bank 2 selected (64 KB)
• DIP 3 (Mode B) - When in MBC5 mode (DIP 1 ON):
• OFF = ROM bank 1 selected (4 MB, or up to ALL 8 MB), FRAM bank 1 selected (64 KB, or up to all 128 KB), can only fit 1 game on cartridge in 8 MB + 128 KB configuration
• ON = ROM bank 2 selected (4 MB), FRAM bank 2 selected (64 KB)

NOTICES:

• To flash this cartridge yourself, purchase a Joey Jr. HERE!
• If using a Joey Jr. to flash this cartridge yourself, you MUST update your Joey Jr. to the latest firmware, found HERE!
• A recent update has been applied to ALL BennVenn MBC3000 model flash cartridges that allows for greater compatibility with FPGA-based consoles, including the Analogue Pocket, ModRetro Chromatic, the FunnyPlaying FPGA "FPGBC" console, etc.; Use with GENUINE console hardware is still recommended, and full FPGA compatibility is NOT guaranteed.
• All aftermarket flash cartridges currently available (not just BennVenn) do not run properly on FPGA-based game consoles, so we recommend using GENUINE / ORIGINAL consoles for playing this flash cartridge!
• If you selected a "Flash my ROM (email us)" option above, please email us at support@highscoretech.com immediately after placing your order to let us know your FULL NAME and ORDER NUMBER, and to provide us your game ROM file/files (2 ROMs maximum; 4 MB max size for two, 8 MB max size for one).  THE ACTUAL GAME ROM FILE MUST BE SENT.  WE DO NOT AND CANNOT PROVIDE ROM FILES!  Thank you!
